제품특징 및 장점

CAM520 Pro에는 최고로 선명한 최고급 총 18배 줌을 제공합니다. 또한 AVer SmartFrame, Sony True WDR 및 IP 비디오 스트리밍과 같은 최신 기술을 적용한 프로페셔날 컨퍼런스 카메라입니다.

CAM520 Pro에는 총 18배 줌 및 다중 자동 초점 광학 장치가 내장되어 있어 제품의 섬세한 부분까지 풀 HD 1080p 품질로 제공합니다.

CAM520 Pro는 안면 인식을 통해 모든 사람을 빠르게 캡처하고 누군가가 방에 들어 오거나 나갈 때마다 자동으로 프레임을 다시 구성합니다.

제품사양

Camera: Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
SmartFrame for automatic FOV adjustment to fit all participants
True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
Zoom: 18X total zoom (12X optical zoom)
Wide field of view (DFOV): 82°
Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
Lens F#: 1.8 (wide) ~ 2.8 (tele)
Mirror, flip, AE, white balance: auto/manual override via PTZApp
Minimum focus distance: 1.5 m
Standard tripod screw holes and Kensington slot

Motorized Pan & Tilt Movement: Pan: ±170°
Tilt: +90° (up) -30° (down)
10 camera presets (through remote control)
Fast and quiet pan & tilt movement

Video Format: YUV, YUY2, MJPEG, NV12
Network video compression format: H.264
Network protocols: RTSP, RTMP

HDMI & PoE**: HDMI 1.3: Up to 1080p 60fps
DIP Switch
PoE+: 802.3at
** There are two SKUs for CAM520 Pro: CAM520 Pro and CAM520 Pro (PoE). HDMI & PoE functions are only included for the CAM520 Pro (PoE) SKU. Please contact your local agents to get these features.

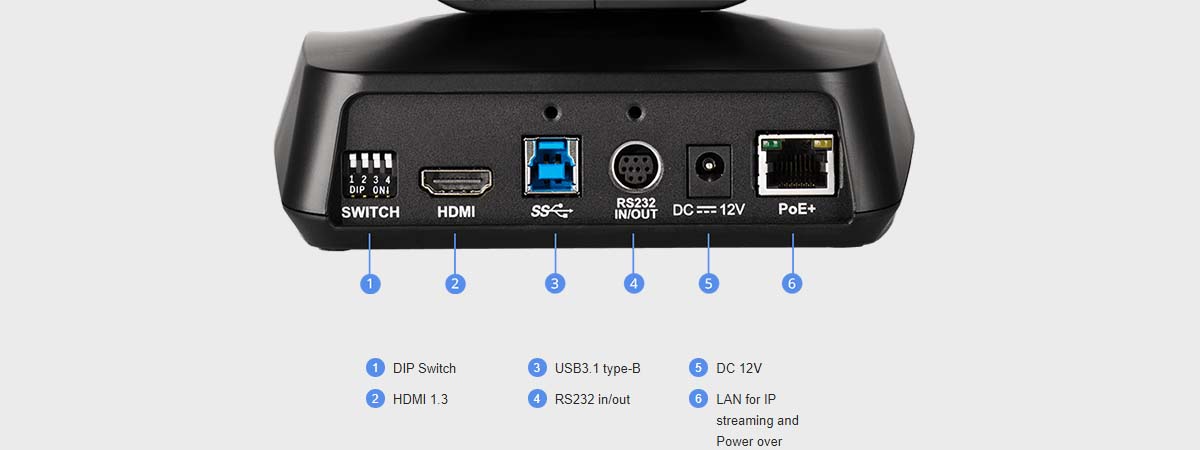

Connectivity: 12V/2A power adaptor
Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
USB 3.1 type-B connector
IP (RJ45)
HDMI **
** Only available for CAM520 Pro (PoE) SKU

USB: 3.1 Gen1 Type B, backward compatible with USB 2.0
UVC (USB video class) 1.1

Control: IR remote control
VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
Remote side: VISCA over IP, IP (RJ45)
UVC/UAC plug and play
WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
OSD setting: HDMI out to TV monitor**
PTZApp
** Only available for CAM520 Pro (PoE) SKU

System Requirements: Windows® 7/10
Windows® 10 Enterprise (IoT) LTSC (version 1809)
Mac OS X 10.7 or higher
Google Chromebook™ version 29.0.1547.70
Android 5 or higher
